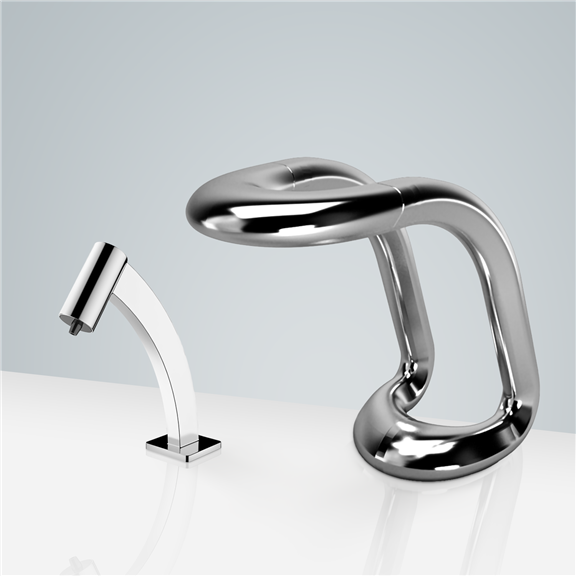

Bravat Commercial Automatic Aqua Motion Sensor Faucet with Automatic Touchless Soap Dispenser

Fontana Automatic Touchless Soap Dispensers are ideal for commercial use applications in high traffic restrooms mainly restaurants, office buildings, public facilities, hospitals and other public restroom facilities.. Fits all standard US plumbing. Uses 4AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi. Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow.

Sensor Activated Faucet Special Features

• Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
• Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
• Flashing light indicator; a diagnostic indicator for power-up, low battery, and solenoid function.
• The meaning of the codes are described in the installation instructions.
• Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
• Faucet can be mount to any sink surface.
• ADA Compliant.
• Batteries life 8,000 cycles per month and with enough water pressure is approx 5-year service life of the batteries.
• Adjustable sensing range; while the factory range is set about 4" to 5" from the sensor, it can be adjusted.

Aqua Motion Sensor Faucet Specifications

• Diameter of inlet pipe: DN15
• Diameter of the outlet pipe: DN15
• Water Pressure: 0.05Mpa - 0.7Mpa
• Power and Voltage: DC.6V / AC.110-220V - 50/60Hz
• Power Consumption: 0.5MW
• Architectural Spec: Available for Free Download in Revit Families, and BIM Object File.
• Detection Zone: Factory set 25cm/10" (based on standard inductive board)
• Ambient Temperature: 1 - 45 °C / 33.8 -113 °F
• Degree of protection by enclosure: 1P56
• Battery: 4 x 'AA' size cells
• Operational water pressure range: 0.05 - 0.6MPa
• Water supply pipe size: DN15

FontanaShowers® Product Warranty Information

Installation Instructions for Bravat Commercial Aqua Motion Sensor Faucet Installation Manual
