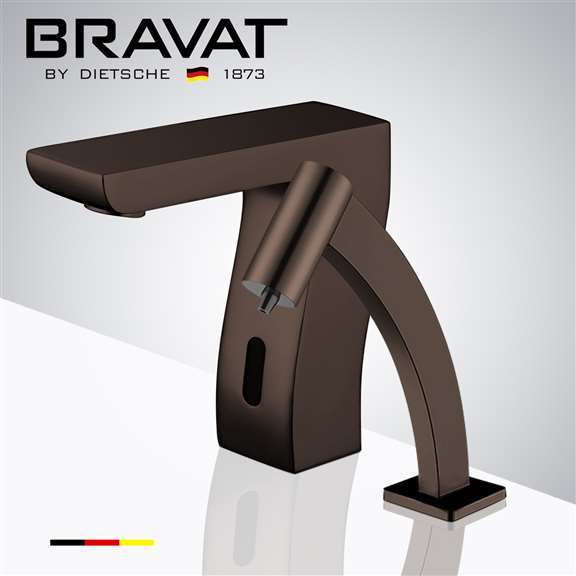

Bravat Commercial Automatic Motion Light Oil Rubbed Bronze Sensor Faucets with Automatic No Touch Soap Dispenser
Touchless Bathroom Faucet



Alternative Views:
Our Price: $1,658.02



Product Code: FS18263LB
Qty:

Description Technical Specs


Bravat Commercial Automatic Motion Light Oil Rubbed Bronze Sensor Faucets with Automatic No Touch Soap Dispenser

Bravat Commercial Automatic Aqua Touchless Faucet
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow. Capable of delivering superior performance coupled with its solid/durable construction will guaranty life time flawless performance not to mention this Automatic No Touch Soap Dispenser will upgrade any commercial bathroom with a modern/contemporary look. It is our goal to provide our customers not only excellent products but also a leading lifestyle. Fontana Automatic No Touch Soap Dispensers are ideal for commercial use applications in high traffic restrooms mainly restaurants, office buildings, public facilities, hospitals and other public restroom facilities.. Fits all standard US plumbing .Uses 4AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.

Bravat Touchless Bathroom Faucets Specifications

  • Diameter of inlet pipe: DN15
  • Diameter of the outlet pipe: DN15
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Architectural Spec: Available for Free Download in Revit Families, and BIM Object File.
  • Power and Voltage: DC.6V / AC.110-220V - 50/60Hz
  • Power Consumption: 0.5MW
  • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
  • Ambient Temperature: 1 - 45 °C / 33.8 -113 °F
  • Degree of protection by enclosure: 1P56
  • Battery: 4 x 'AA' size cells
  • Operational water pressure range: 0.05 - 0.6MPa
  • Water supply pipe size: DN15
FontanaShowers® Product Warranty Information FontanaShowers Product Warranty
Features
      • Sensor faucet complete motion detection operation.
      • Sensitive Sensor with Infrared AI Smart-Chip
      • Factory set to 30-second Auto Shutoff (can be adjusted).
      • Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
      • Solid Brass Construction, Light Oil Rubbed Bronze Finish
      • Easy to Install - Instructions Included
      • Water-resistant solenoid enclosure
      • Advanced energy-saving design for long-lasting battery life
      • Comes complete with Hoses & Accessories
      • Power Supply: AC110V And DC6V (batteries not included)
      • AC/DC power option.
      • ADA Compliant
      • Easily can be installed in new or retrofit applications.
      • Usage: Commercial / Residential








    • Sensor Activated Faucet Special Features

      • Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
      • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
      • Flashing light indicator; a diagnostic indicator for power-up, low battery, and solenoid function.
      • The meaning of the codes are described in the installation instructions.
      • Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
      • Faucet can be mount to any sink surface.
      • ADA Compliant.
      • Batteries life 8,000 cycles per month and with enough water pressure is approx 5-year service life of the batteries.
      • Adjustable sensing range; while the factory range is set about 4" to 5" from the sensor, it can be adjusted.
