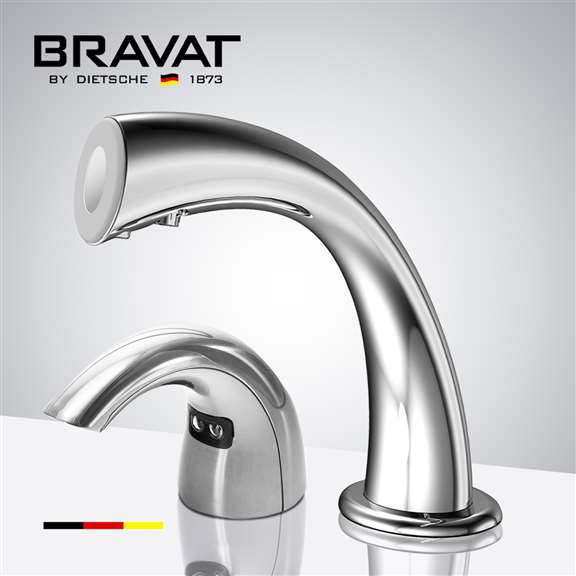

Bravat Commercial Automatic Electrical Sensor Faucet with Automatic Touchless Soap Dispenser in Chrome

Bravat Touchless Bathroom Faucets Specifications

• Diameter of inlet pipe: DN15
• Diameter of the outlet pipe: DN15
• Water Pressure: 0.05Mpa - 0.7Mpa
• Power and Voltage: DC.6V / AC.110-220V - 50/60Hz
• Power Consumption: 0.5MW
• Detection Zone: Factory set 25cm/10" (based on standard inductive board)
• Ambient Temperature: 1 - 45 °C / 33.8 -113 °F
• Degree of protection by enclosure: 1P56
• Battery: 4 x 'AA' size cells
• Operational water pressure range: 0.05 - 0.6MPa
• Water supply pipe size: DN15

Sensor Activated Faucet Special Features

• Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
• Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
• Flashing light indicator; a diagnostic indicator for power-up, low battery, and solenoid function.
• The meaning of the codes are described in the installation instructions.
• Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
• Faucet can be mount to any sink surface.
• ADA Compliant.
• Architectural Spec: Available for Free Download in Revit Families, and BIM Object File.
• Batteries life 8,000 cycles per month and with enough water pressure is approx 5-year service life of the batteries.
• Adjustable sensing range; while the factory range is set about 4" to 5" from the sensor, it can be adjusted.
