Concealed Bravat Shower Mixers: Installation Requirements, Access Planning, and Finish Coordination

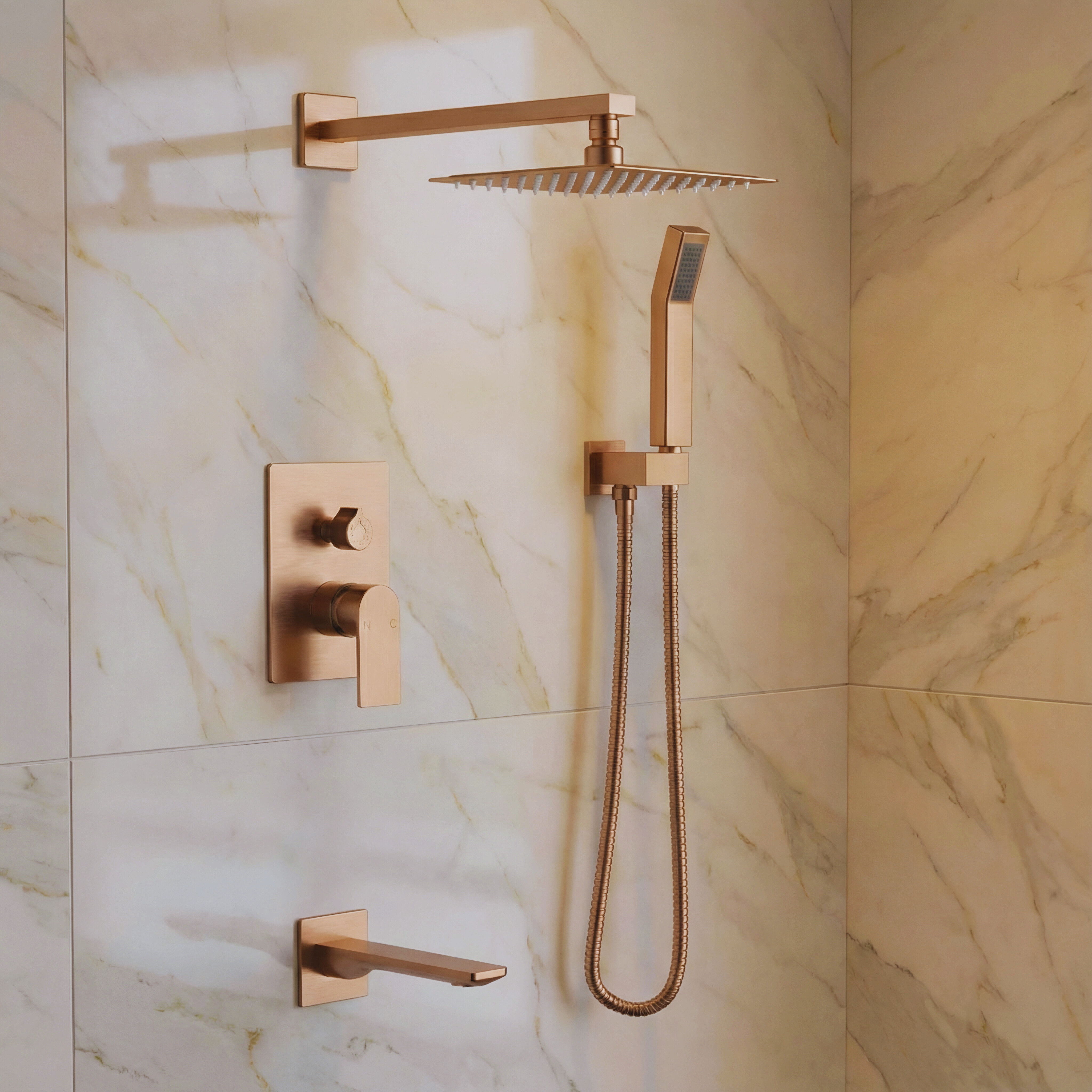

Concealed shower mixers can create a cleaner bathroom elevation, but they also shift the technical burden behind the finished wall. For architects, plumbing engineers, designers, contractors, and facility teams, a Bravat concealed shower mixer should be reviewed as a coordinated assembly of valve body, trim, wall build-up, waterproofing, supply piping, access, finish, controls, and long-term service strategy.

This AEC-focused guide explains what to verify before specifying concealed Bravat shower mixers, how to coordinate wall and valve conditions during installation, and how to reduce future maintenance conflicts after the bathroom is complete.

View Bravat Shower Systems Visit BravatShowers

Why Concealed Shower Mixers Need Early Coordination

A concealed shower mixer hides most of the mechanical assembly behind tile, stone, wall panels, or waterproof backer board. The final appearance may look simple, but the installation depends on correct valve depth, wall cavity capacity, supply alignment, substrate thickness, waterproofing continuity, trim tolerance, and future access.

In renovation work, the existing wall depth and pipe location may decide whether a concealed Bravat mixer is practical. In new construction, the design team has more control, but coordination must still happen before rough-in. Once the finished wall is closed, a small mismatch in valve depth or trim alignment can become expensive to correct.

Fontana Luminara Gold Thermostatic Shower Set reference for thermostatic concealed mixer coordination

Primary Installation Requirements

The installation requirements for concealed Bravat shower mixers should be translated into clear drawings, schedules, and submittal notes. The key objective is to make sure the selected mixer fits the actual wall assembly and remains serviceable after tile, waterproofing, and finish trim are complete.

Wall Depth and Rough-In

Confirm the available wall cavity, finished wall thickness, rough-in depth, trim tolerance, and backing requirements before the valve is ordered or installed.

Supply Alignment

Hot and cold supply lines should align with the mixer body without excessive offsets, stressed joints, or field improvisation that complicates future maintenance.

Valve Compatibility

Verify whether the design requires pressure balance, thermostatic control, diverter control, volume control, or multiple outlet sequencing.

Waterproofing Interface

Penetrations at the mixer, trim plate, shower outlet, hand shower bracket, and accessories must be coordinated with the project waterproofing system.

Access and Isolation

Review access to cartridges, check stops, filters, service stops, diverters, and trim screws before closing the wall or installing final surface materials.

Commissioning

Test temperature control, outlet sequence, flow, leaks, trim alignment, and service access before turnover, especially in repeated hotel or multifamily installations.

Fontana Velistra Matte White Thermostatic Rainfall Shower Set reference for wall depth and access planning

Access Planning: What Must Remain Serviceable

Concealed mixers are valued because they reduce visible hardware. However, concealed does not mean inaccessible. Every valve body, cartridge, diverter, check stop, filter, and trim plate should have a documented service path. When access is ignored, future maintenance may require tile removal or wall demolition.

Access planning is especially important in hotels, spas, multifamily towers, healthcare-adjacent bathrooms, senior living projects, and repeated unit construction. A serviceable Bravat concealed mixer installation should allow routine maintenance without damaging the finished bathroom.

Access questions for project teams

Can the trim be removed without damaging tile? Are service stops reachable? Can the cartridge be replaced from the room side? Is the valve depth within the manufacturer’s tolerance? Is there a ceiling, closet, chase, or adjacent wall that can support access if needed? Are spare parts and model numbers documented for the owner?

Concealed Mixer Coordination Matrix

This matrix can be used during design review, submittal review, mockup review, and field inspection. It helps identify conflicts before the finished wall is closed.

Coordination Area	Review Question	Risk If Missed	Recommended Document
Wall assembly	Does the wall cavity support the concealed Bravat mixer depth, piping, blocking, and finished surface thickness?	Trim misalignment, shallow rough-in, wall reconstruction, or inaccessible valve body.	Wall section, plumbing elevation, rough-in detail.
Valve selection	Is the selected mixer pressure-balanced, thermostatic, diverter-based, or volume-control based?	Wrong trim, unsafe temperature behavior, weak outlet control, or confusing operation.	Valve schedule, product data, control diagram.
Outlet planning	Will the mixer serve a rain head, fixed head, hand shower, body spray, tub outlet, or multiple outlets?	Undersized supply, wrong diverter logic, pressure loss, or user complaints.	Fixture schedule, flow review, outlet sequence diagram.
Waterproofing	How are all wall penetrations sealed around the mixer, trim, outlet, brackets, and accessories?	Leak risk, substrate damage, mold, callbacks, or failed enclosure performance.	Waterproofing detail, inspection hold point, manufacturer method.
Access	Can service teams reach the cartridge, check stops, filters, diverter, and trim fasteners?	Destructive repair, high lifecycle cost, extended downtime, or damaged finishes.	Access plan, O&M manual, closeout matrix.
Finish coordination	Does the trim finish match the showerhead, hand shower, hose, outlet, drain, hinges, and accessories?	Uncoordinated appearance, finish mismatch, cleaning conflicts, or replacement difficulty.	Finish schedule, mockup review, owner maintenance notes.

Finish Coordination for Concealed Mixer Trim

Concealed mixer trim is visually prominent because it often sits on a clean tile or stone surface with few competing elements. The finish should be coordinated with the full shower system, not selected independently. Bravat trim, showerhead, hand shower, hose, wall outlet, bracket, drain, door hardware, robe hooks, and accessories should read as one deliberate finish family.

Finish coordination should also include maintenance review. Chrome, brushed nickel, matte black, brushed gold, gunmetal, oil-rubbed bronze, and matte white finishes may require different cleaning practices. Housekeeping teams should receive finish-specific cleaning guidance before occupancy.

Fontana Aurelia Chrome Luxury Rainfall Shower Set reference for chrome concealed mixer trim coordination

Wall Assembly and Waterproofing Requirements

Concealed mixers pass through the most sensitive part of the shower enclosure: the waterproof wall. The wall assembly must support the valve body, resist moisture, maintain seal continuity, and allow trim installation within tolerance. This requires coordination between the architect, plumbing contractor, tile installer, waterproofing installer, and manufacturer instructions.

Wall Build-Up

Account for studs, backer board, waterproof membrane, mortar, tile or stone thickness, adhesive, trim gasket, and escutcheon tolerance. The finished wall depth should match the valve’s allowed range.

Backing and Support

Provide blocking or support where required for the mixer, outlet, hand shower bracket, sliding bar, and accessories. Avoid relying only on tile or thin substrate for structural support.

Penetration Sealing

Every mixer opening, trim penetration, outlet elbow, fastener, and bracket should be sealed using a method compatible with the selected waterproofing system.

Inspection Hold Point

Require inspection before wall closure and before tile installation. Confirm rough-in depth, valve orientation, pressure test, waterproofing continuity, and access location.

Fontana Aquenor Gunmetal PVD Vertex wall mounted shower set reference for concealed mixer finish and wall assembly

Pressure, Flow, and Outlet Sequencing

A concealed Bravat mixer may serve one outlet or a combination of rain head, fixed head, hand shower, tub spout, or body spray. Each outlet changes the system demand. The plumbing engineer should confirm dynamic pressure, pipe sizing, water heater capacity, valve compatibility, and whether outlets are intended to operate independently or simultaneously.

Multi-outlet shower systems should be tested during commissioning. The user should be able to understand how the trim controls water temperature, flow, and outlet selection without needing special instructions. In hospitality and multifamily work, unclear sequencing can create repeated guest complaints and maintenance calls.

EPA WaterSense Showerheads WaterSense Product Search

Accessibility and Ergonomic Placement

Concealed mixer placement should support safe and intuitive use. Control height, reach range, seat relationship, hand shower location, hose length, grab bar clearance, and door swing should be reviewed where accessibility applies or where aging-in-place performance is desired.

In accessible shower compartments, hand-held shower spray units, controls, seats, grab bars, and clearances must be coordinated with the adopted accessibility standard and project jurisdiction. Even when full accessibility compliance is not required, ergonomic placement improves usability for a wider range of occupants.

Architectural placement questions

Can the user operate the mixer without standing directly under cold start-up water? Are controls reachable from the entry side or seat position? Does the hand shower hose reach the intended user positions? Do accessories interfere with grab bars or door operation? Is the trim placed where it feels intentional within the tile layout?

ADA 2010 Standards Access Board Bathing Rooms

Fontana Virelux Brushed Nickel Wall Mounted Rainfall Shower Set reference for ergonomic shower control planning

Common Concealed Mixer Risks to Avoid

Wrong Rough-In Depth

A concealed valve set too far forward or too far back may prevent trim from seating correctly. Verify depth against the final wall build-up, not only the stud face.

Unplanned Access

Service access should be documented before walls are closed. Do not assume the trim can solve every future maintenance requirement.

Tile Layout Conflicts

Mixer trim should align with tile joints, centerlines, niches, shelves, and accessories. Avoid random trim placement that makes the elevation look improvised.

Outlet Mismatch

Verify that the selected mixer, diverter, and trim logic match the intended rain head, hand shower, fixed head, tub spout, or body spray arrangement.

Finish Substitution

A different finish may not match the showerhead, hose, drain, hinges, or accessories. Review finish samples and owner cleaning requirements.

Skipped Mockup

Repeated bathrooms should use a first-installation mockup to verify rough-in, waterproofing, trim alignment, operation, and access before full rollout.

Fontana Rivellis Matte Black Digital LED Shower Set reference for advanced concealed shower system coordination

Submittal and Closeout Documentation

Concealed mixer documentation should be complete enough for both the installer and the future maintenance team. A clean-looking shower wall is not enough if the owner cannot identify the valve, trim, cartridge, finish, or replacement parts later.

Submittals should include product data, installation instructions, rough-in diagrams, trim information, flow data, valve type, finish code, outlet sequence, required accessories, and service access requirements. Closeout documents should include model numbers, spare parts, cleaning instructions, access notes, warranty information, and commissioning results.

Closeout requirement

Provide an O&M matrix for each concealed Bravat mixer location, including valve body, trim kit, finish, cartridge, outlet configuration, service notes, and replacement part references.

Sample Specification Language

The following specification-style language can be adapted for construction documents, fixture schedules, or project manuals. Always verify model-specific requirements with current Bravat product data and installation instructions.

Specification paragraph

Provide Bravat concealed shower mixer system as scheduled, including valve body, trim, thermostatic or pressure-balanced control where required, diverter where required, compatible showerhead, hand shower, hose, wall outlet, shower arm, brackets, accessories, and finish-matched components required for a complete coordinated shower assembly. Contractor shall verify wall depth, rough-in dimensions, supply connections, valve orientation, waterproofing requirements, blocking, trim clearances, outlet sequencing, service access, pressure test results, and finish alignment before wall closure and final tile installation. System shall be installed in accordance with manufacturer instructions, approved submittals, applicable plumbing code, accessibility requirements where applicable, and project waterproofing details. Contractor shall test temperature control, flow, outlet sequence, leaks, trim fit, and access before final turnover.
