Bravat Commercial Chrome Automatic Hands Free Sensor Faucets

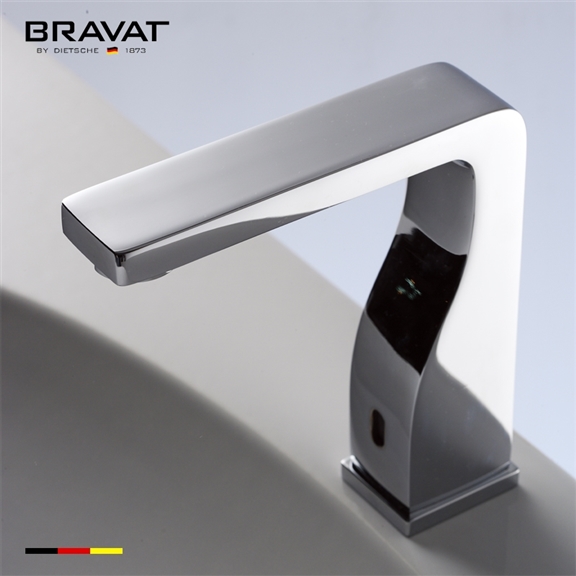

Touchless Bathroom Faucet



Alternative Views:
Our Price: $543.00



Product Code: FS-D637K
Qty:

Description Technical Specs


Bravat Commercial Automatic Hands Free Sensor Faucet


Bravat Commercial Automatic Hands Free Sensor Faucets
Commercial Automatic Hands Free Sensor Faucet Specifications

  • Diameter of inlet pipe: DN15
  • Diameter of outlet pipe: DN15
  • Faucet height: 7" (178mm)
  • Spout Length: 6.69" (170mm)
  • Spout height: 6.22" (158mm)
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Power and Voltage: DC.6V / AC.110-220V - 50/60Hz
  • Power Consumption: 0.5MW
  • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
  • Architectural Spec: Available for Free Download in Revit Families, and BIM Object File.
  • Ambient Temperature: 1 - 45 °C / 33.8 -113 °F
  • Degree of protection by enclosure: 1P56
  • Battery: 4 x 'AA' size cells
  • Operational water pressure range: 0.05 - 0.6MPa
  • Water supply pipe size: DN15

Bravat Automatic Faucet Features

  • Infrared sensor operated, touch-free operation
  • Water Conserving
  • Waterproof sensor
  • Battery low LED light indicator
  • Advanced circuit design saves electricity and water
  • Advanced energy saving design for long lasting battery life.
  • Three-year battery life based on 3,000 hand washes per month
  • Sensor is not affected by reflections or abnormal lighting
  • Self-adapting sensors range
  • Long life durable body
  • Power Supply Options
  • Hands-Free Sanitary Operation
  • ADA Complaint
  • Vandal-Resistant Aerator
  • Automatic 30-Second Time Out
  • Highly-Polished, Chrome Plated Cast Brass Bodies
  • Low Battery Indicator Light
  • In-Line Filter
  • Factory Set Sensor Range
    • FontanaShowers® Product Warranty Information FontanaShowers Product Warranty
    Installation Instructions for Bravat Commercial Automatic Sensor Faucets
    Features

    • Automatic Sensor Activated Faucet Special Features

      • Sensor faucet complete motion detection operation.
      • Sensitive Sensor with Infrared AI Smart-Chip
      • Factory set to 30-second Auto Shutoff (can be adjusted).
      • Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
      • Solid Brass Construction, Polished Chrome Finish
      • Easy to Install - Instructions Included
      • Water resistant solenoid enclosure /li>
      • Advanced energy saving design for long lasting battery life
      • Comes complete with Hoses & Accessories
      • Power Supply: AC110V And DC6V (batteries not included)
      • AC/DC power option.
      • ADA Compliant
      • Easily can be installed in new or retrofit applications.

    • Automatic Sensor Activated Faucet Special Features

      • Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
      • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
      • Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
      • Meaning of the codes are described in the installation instructions.
      • Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
      • Faucet can be mount to any sink surface.
      • ADA Compliant.
      • Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
      • Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
